Some pictures of the reverse engineering process.

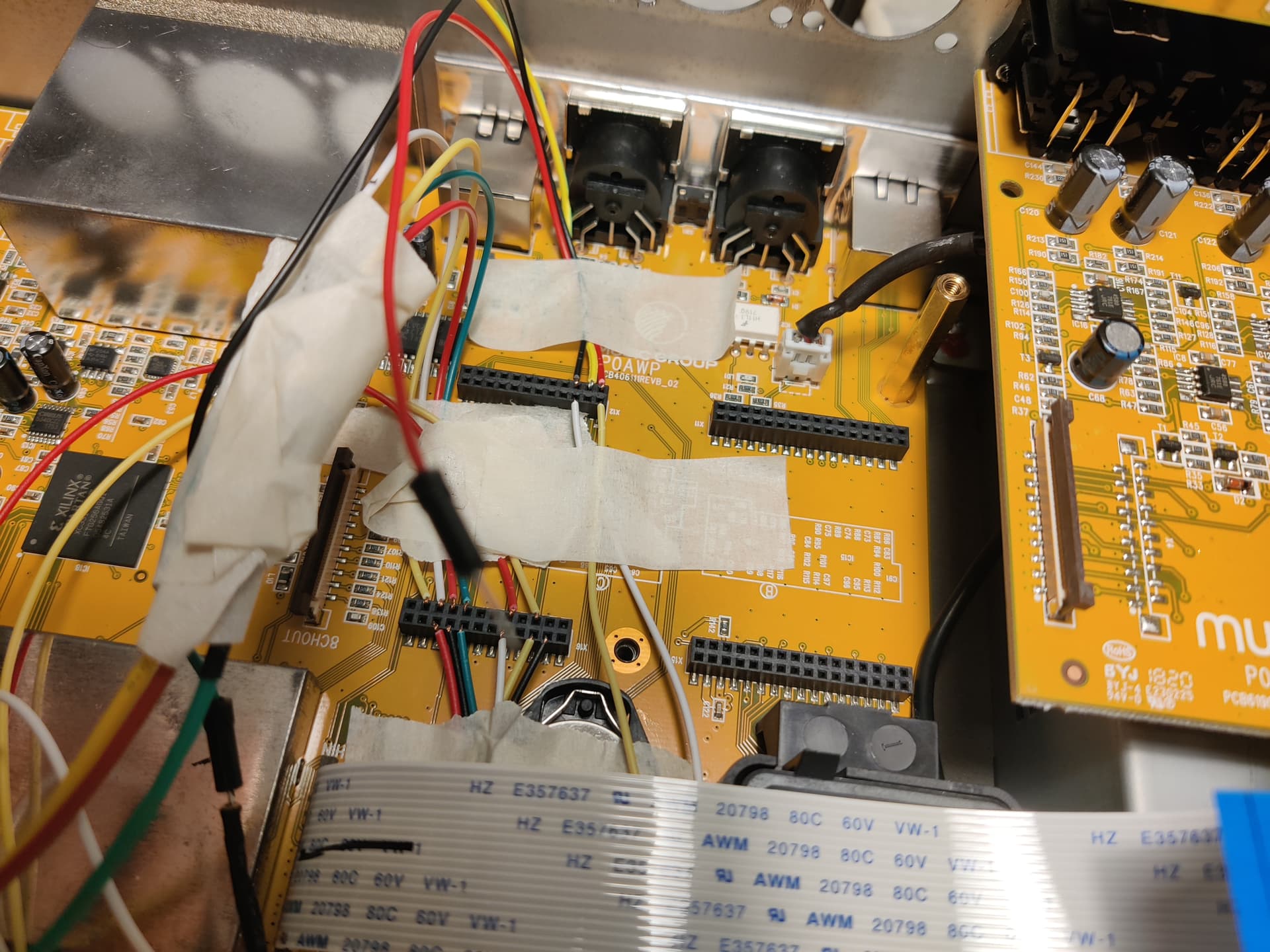

Strategically placed tap wires to listen to the SPI-busses to FPGA and DSPs. Was also usefull to check the signals send from our own Firmware - OpenX32

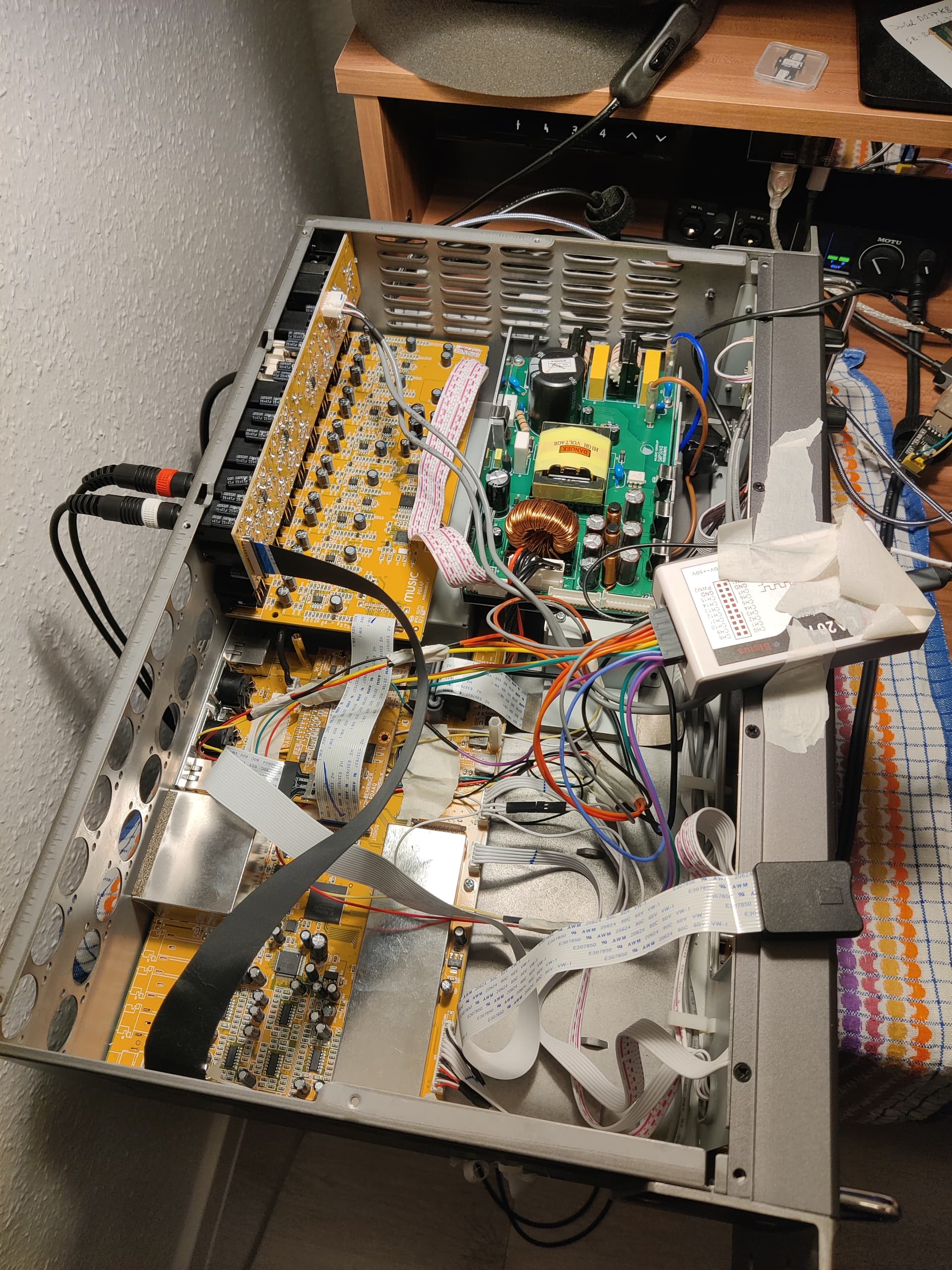

Logic Analyzer at work
