X32 Full from 2012: New Faders and Encoders

Behringer X32 Repairs
1

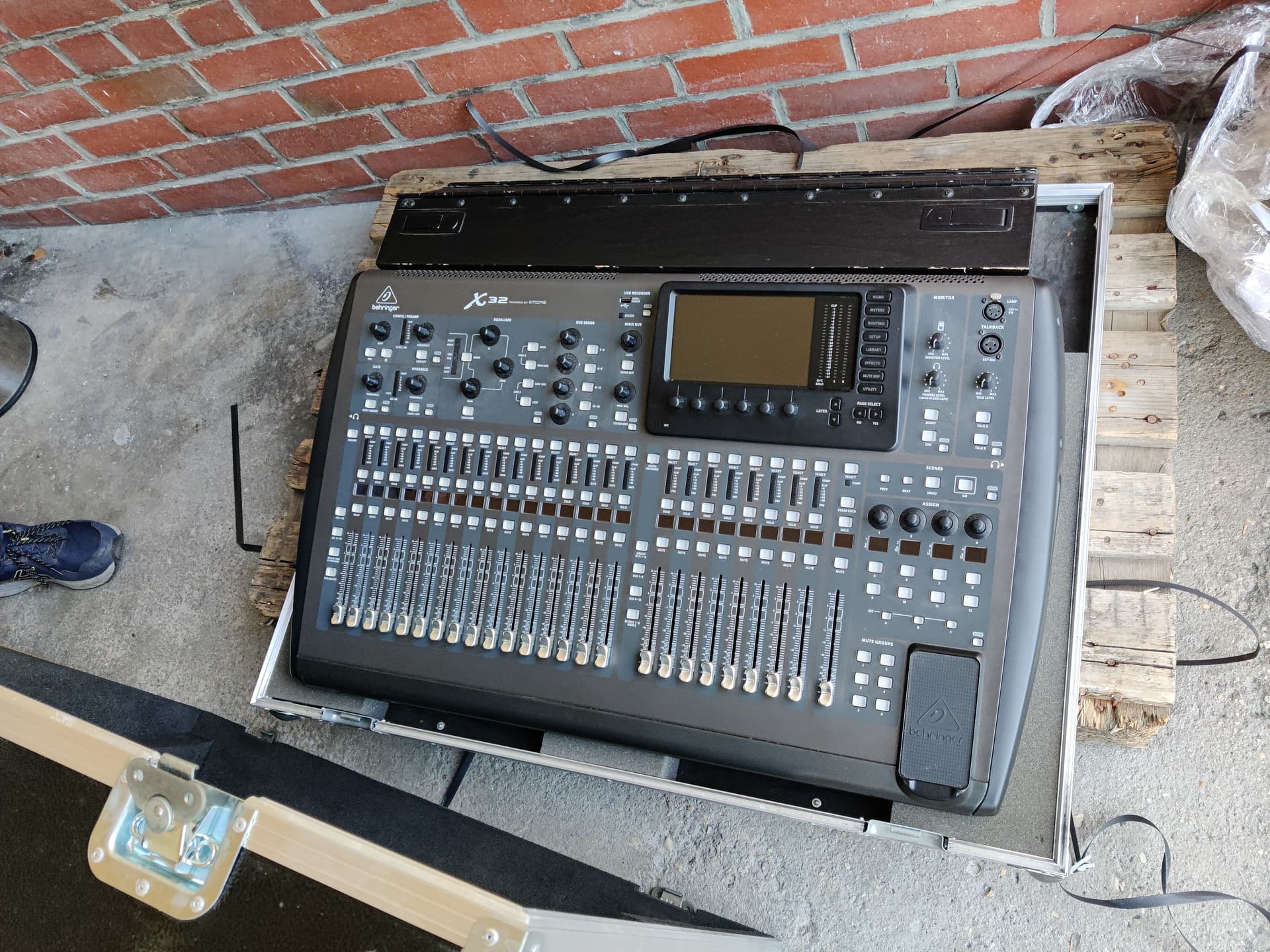

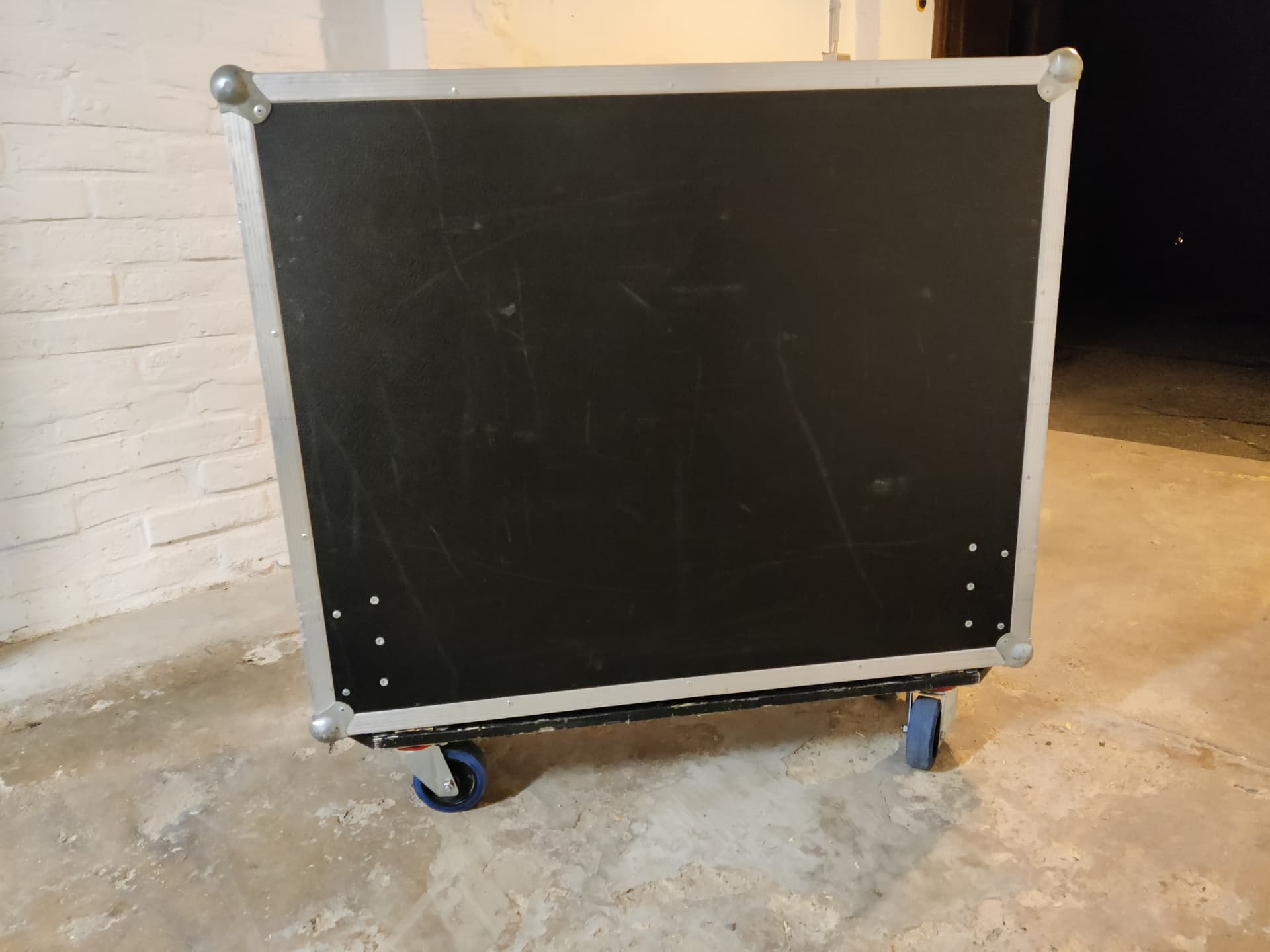

I got a X32 Full with Case.

IMG_20251216_085858
IMG_20251216_0858581920×1440 411 KB

IMG_20251216_201643
IMG_20251216_2016431920×1440 112 KB

IMG_20251216_201510
IMG_20251216_2015101920×1440 299 KB

IMG_20251216_200435
IMG_20251216_2004351920×2560 418 KB

Many Faders and Econders did not work like they should so I wanted to replace them.

1 Like
2

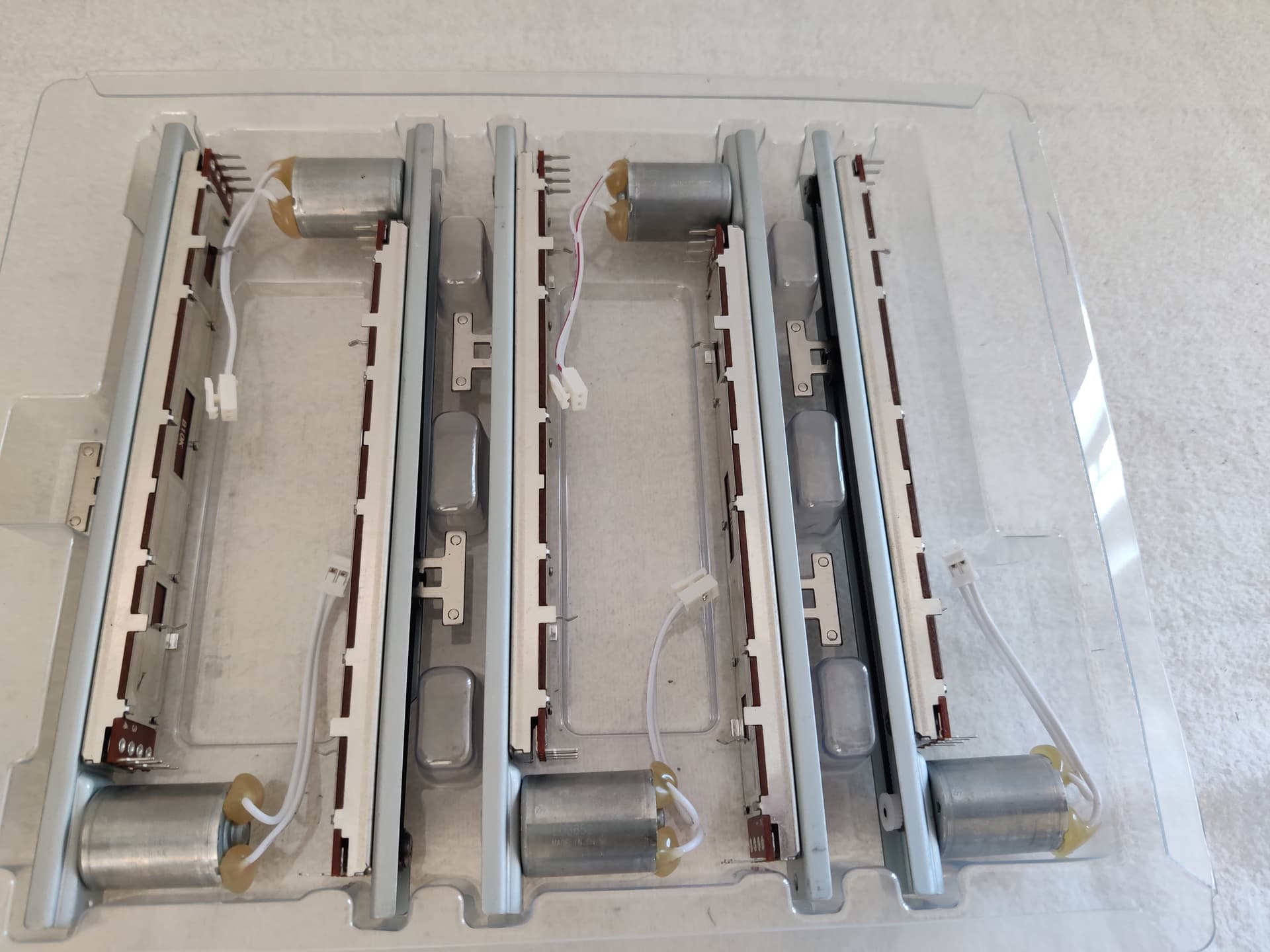

Got new motor faders:

IMG_20251225_142704
IMG_20251225_1427041920×1440 133 KB

IMG_20251225_142707
IMG_20251225_1427071920×1440 175 KB

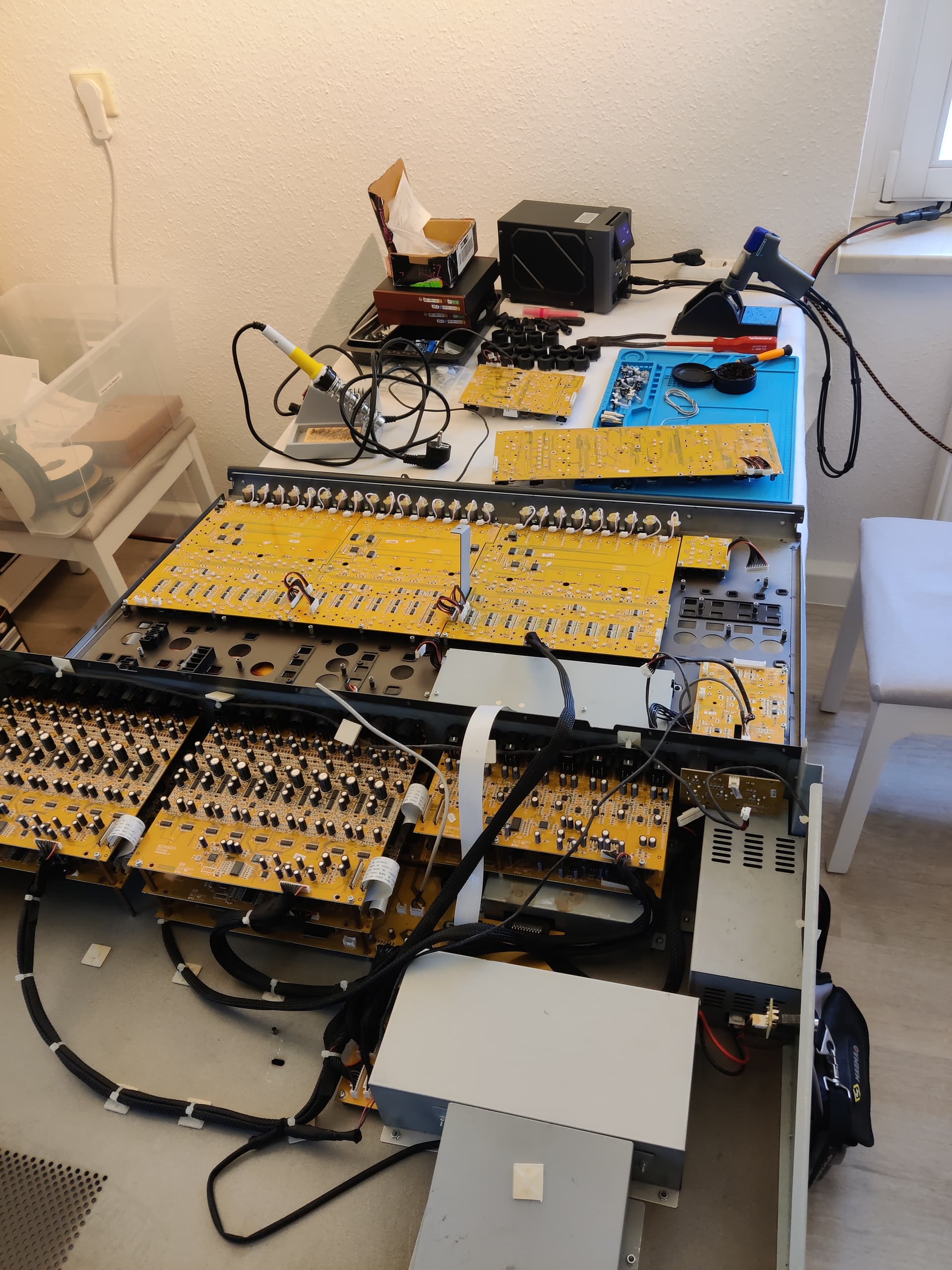

Removing the first fader:

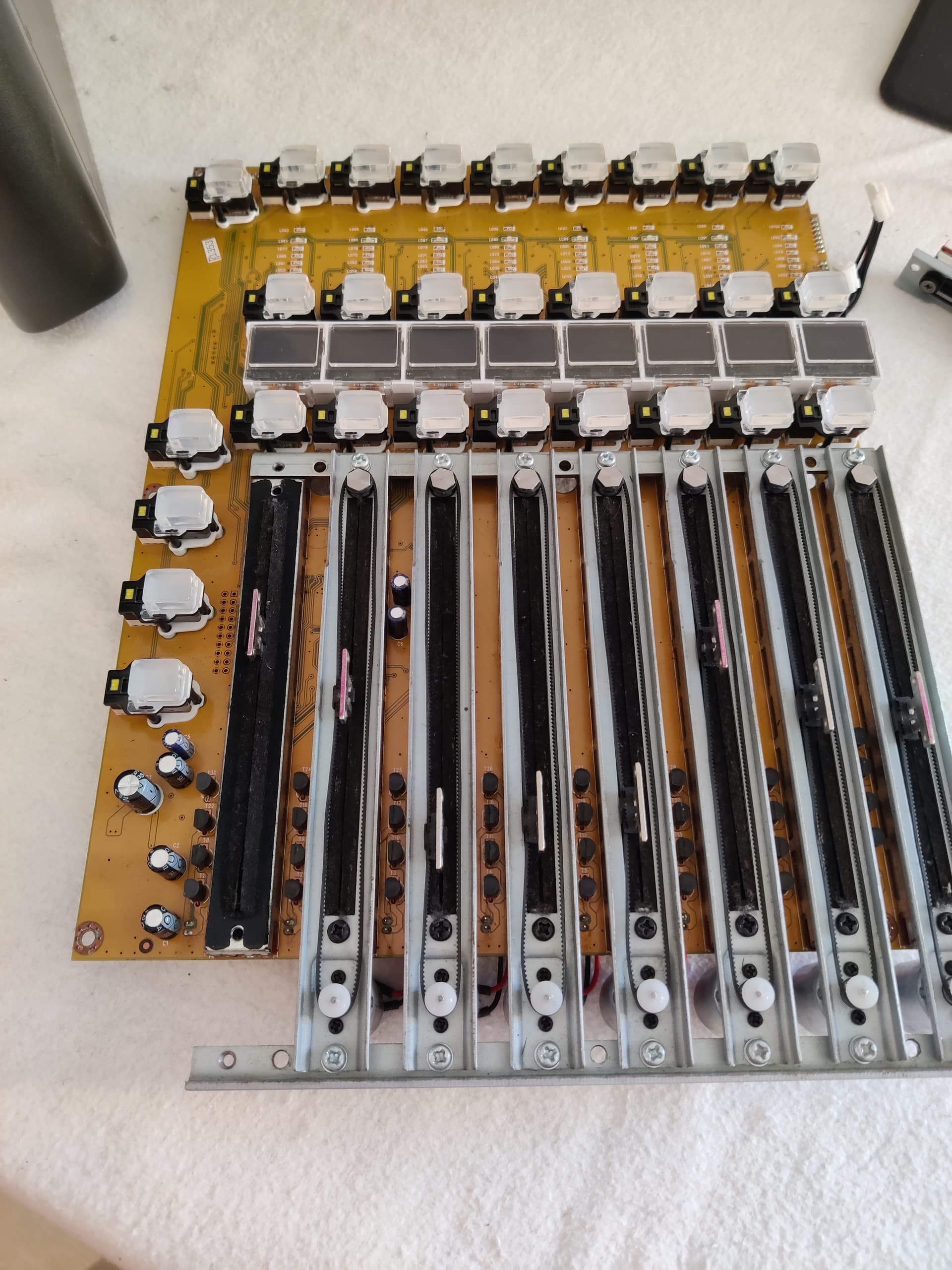

IMG_20251225_151137
IMG_20251225_1511371920×2560 426 KB

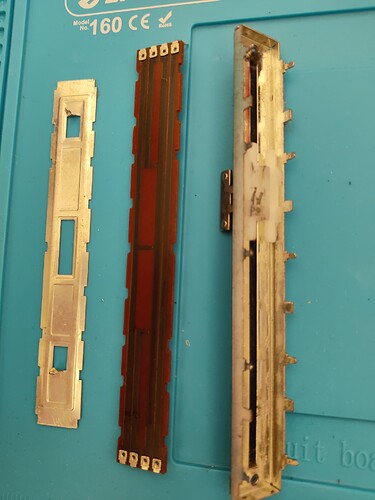

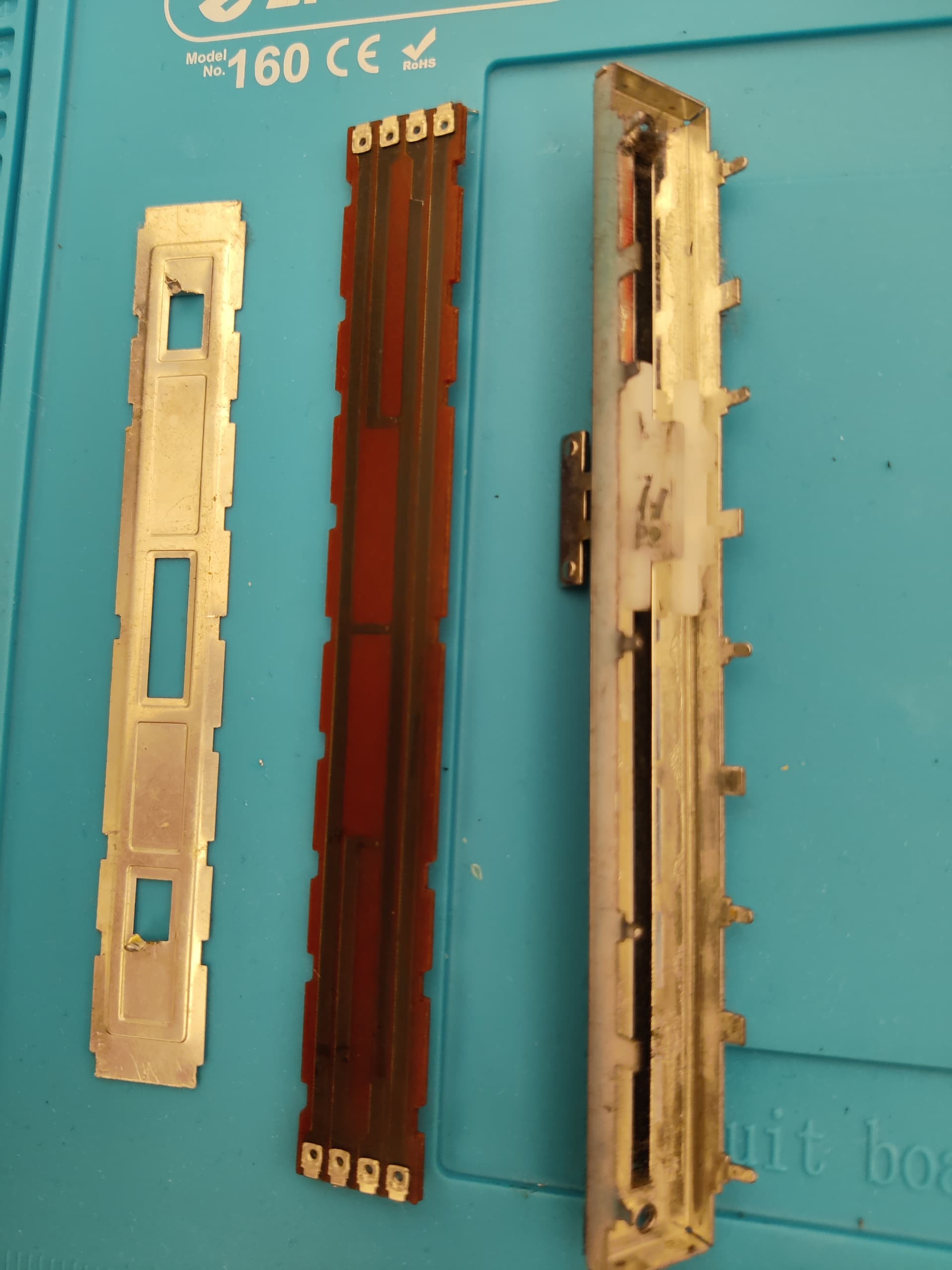

The first fader dismantled. The wipers only touch the two right sliding tracks:

IMG_20251225_170241
IMG_20251225_1702411920×2560 191 KB

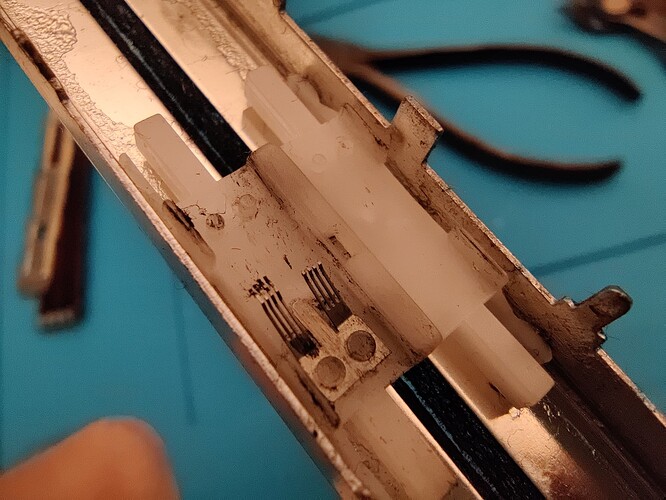

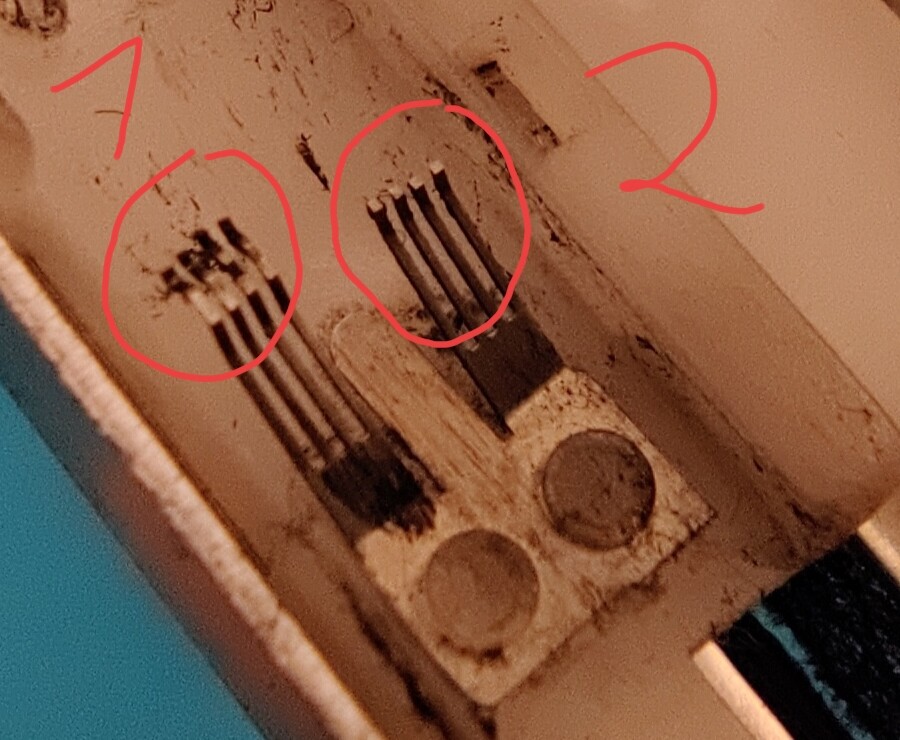

Here you can see the wear after 13 years of usage. The wipers are mostly gone (1 + 2).

IMG_20251225_165657
IMG_20251225_1656571920×1440 249 KB

IMG_20251225_165801
IMG_20251225_165801900×740 150 KB

1 Like
3

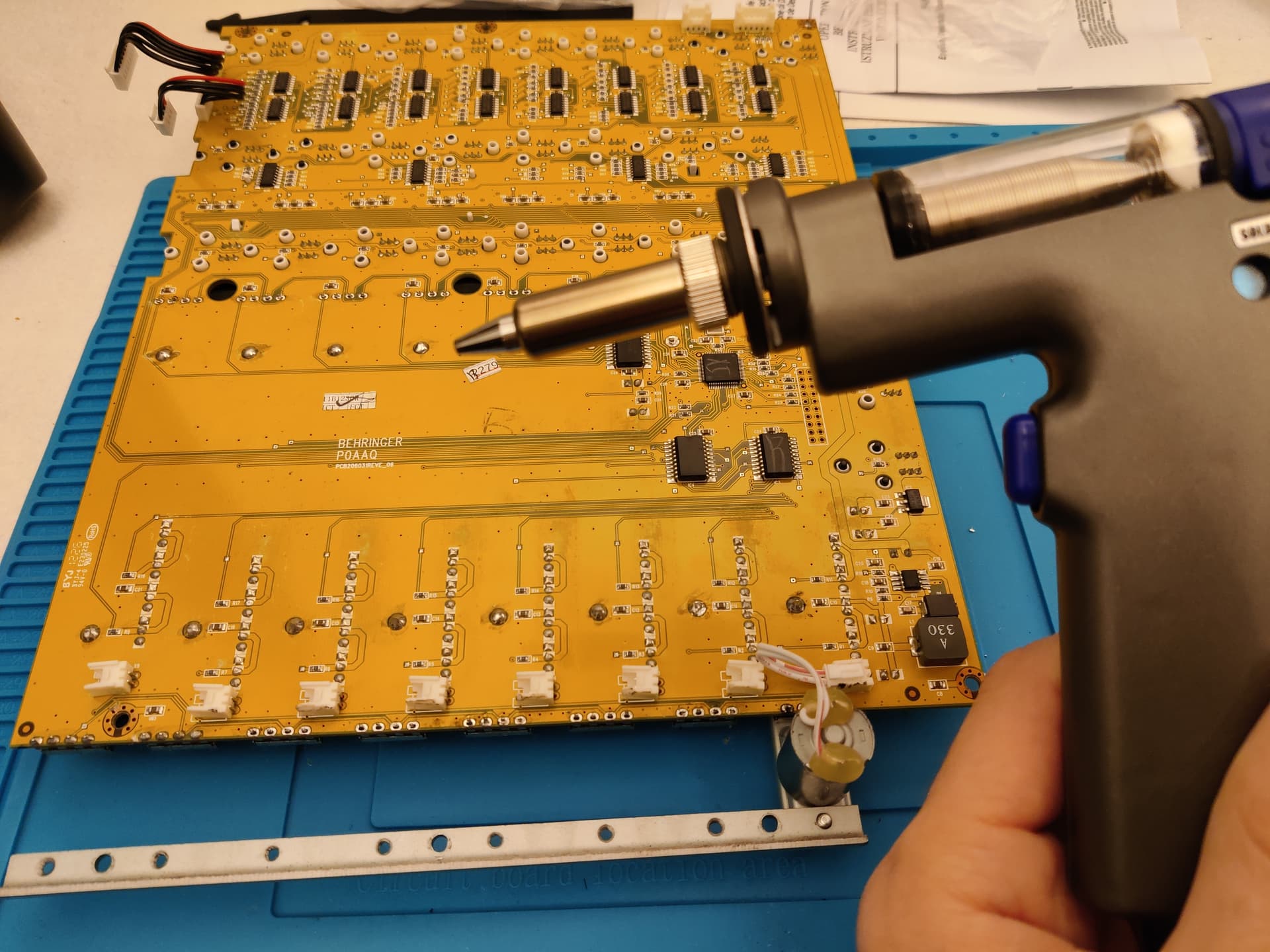

Removing the Faders was done using a desoldering pump.

IMG_20251229_173637
IMG_20251229_1736371920×1440 259 KB

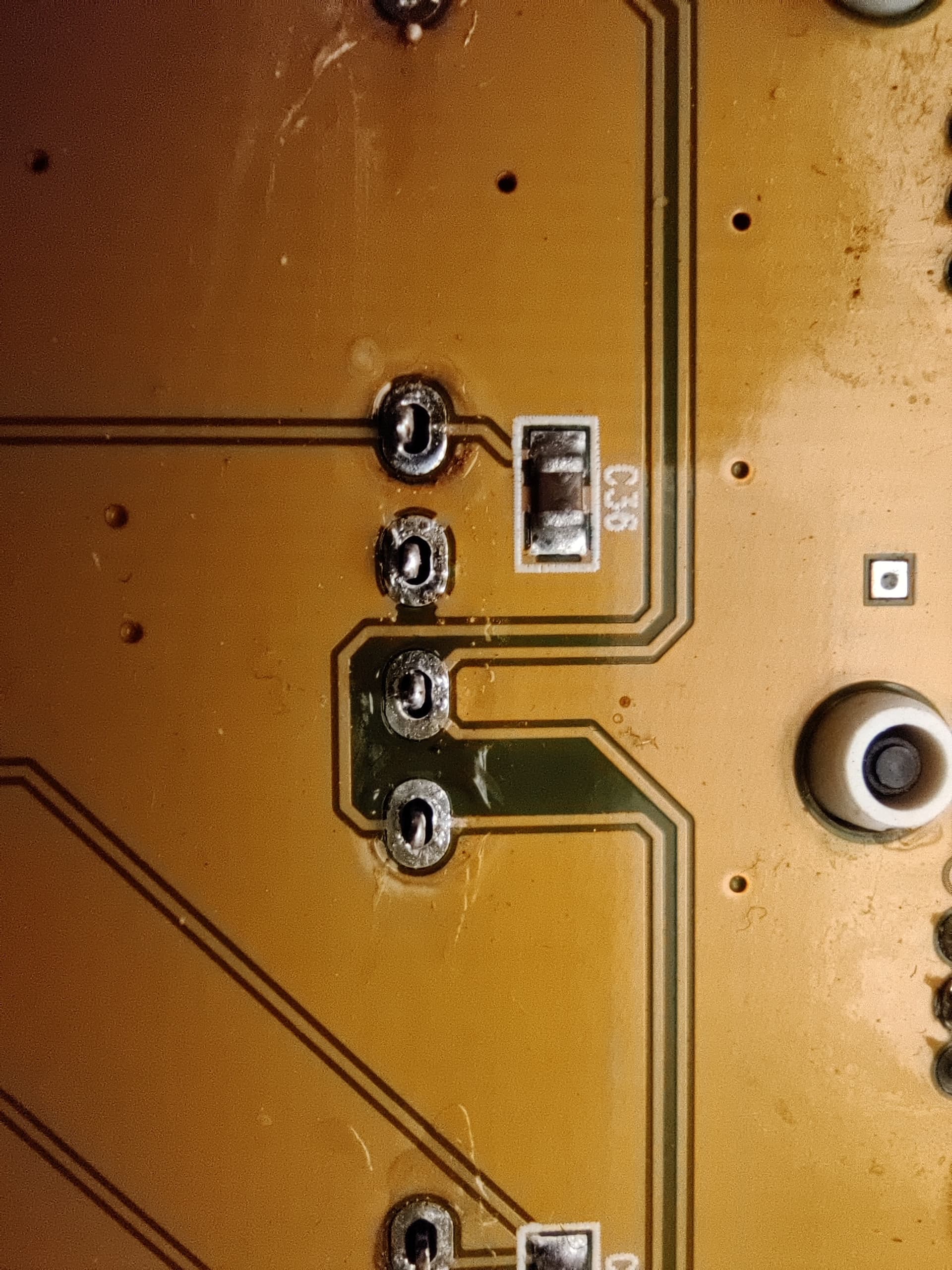

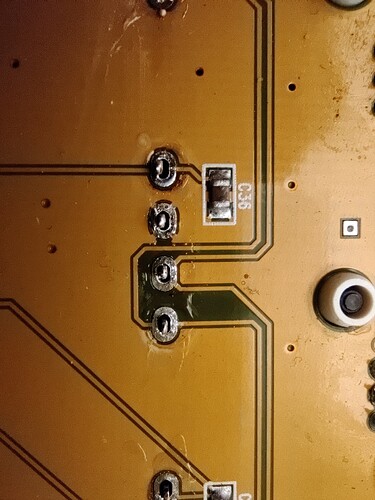

Now the pins are free :slight_smile:

IMG_20251229_173705
IMG_20251229_1737051920×2560 547 KB

Installation of the new fader went well and was easy.

1 Like
4

New big step was replacing all the rotary encoders (except on the display).

IMG_20260202_155608
IMG_20260202_1556081920×2560 461 KB

IMG_20260202_162133
IMG_20260202_1621331920×1440 334 KB

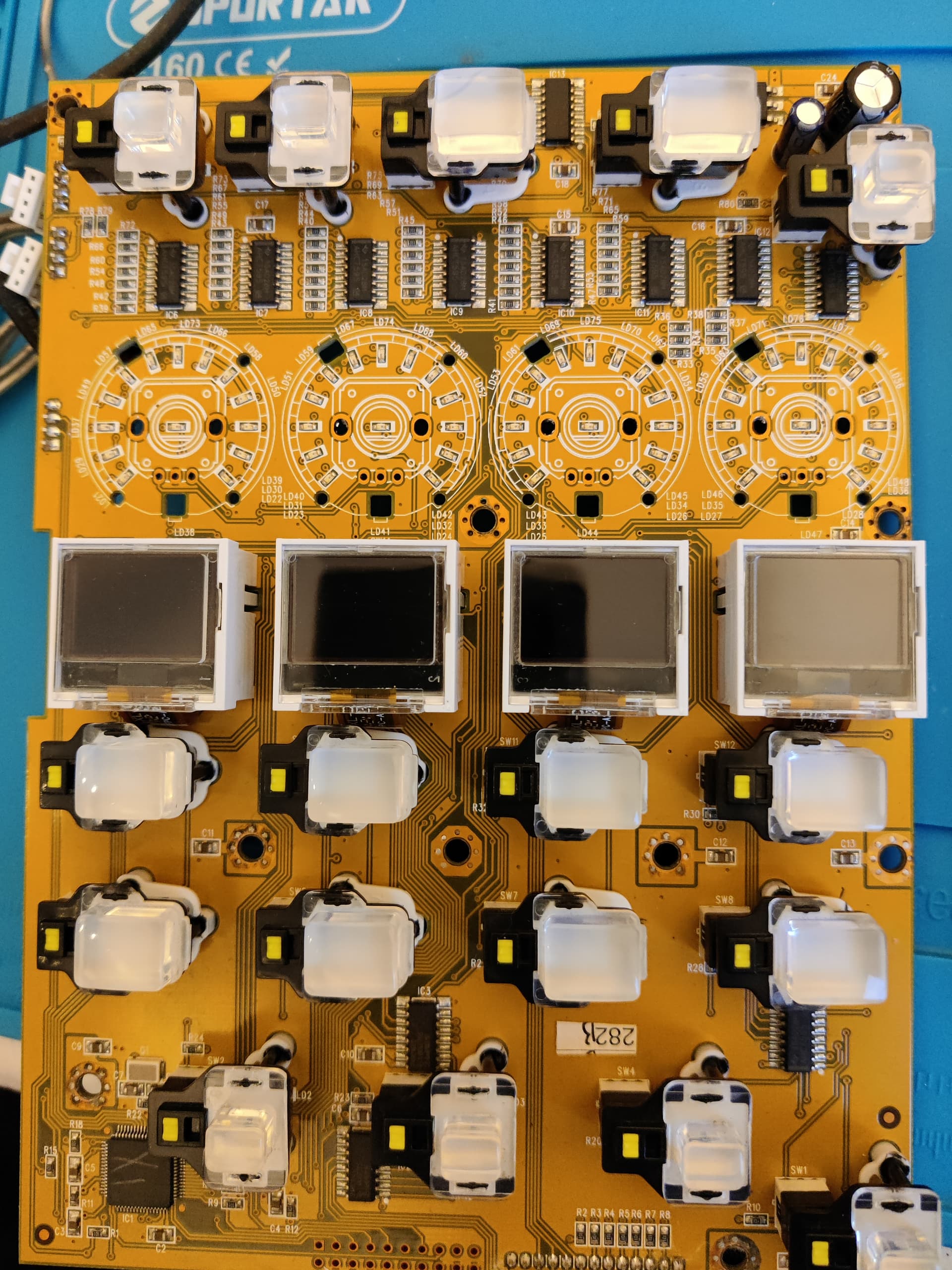

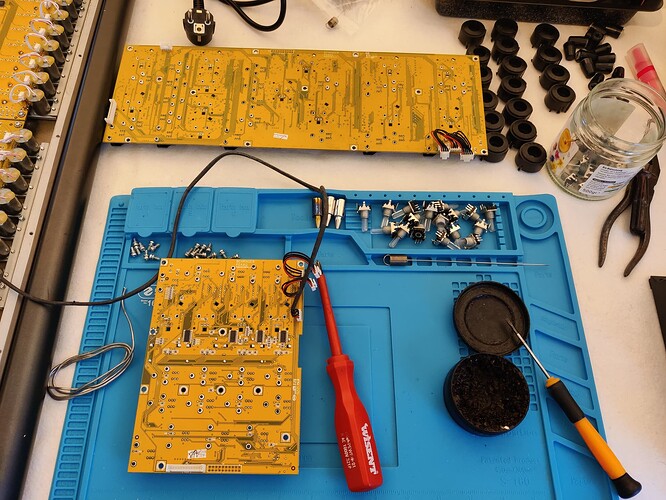

Old encoders removed (Assign Section).

IMG_20260202_162211
IMG_20260202_1622111920×2560 587 KB

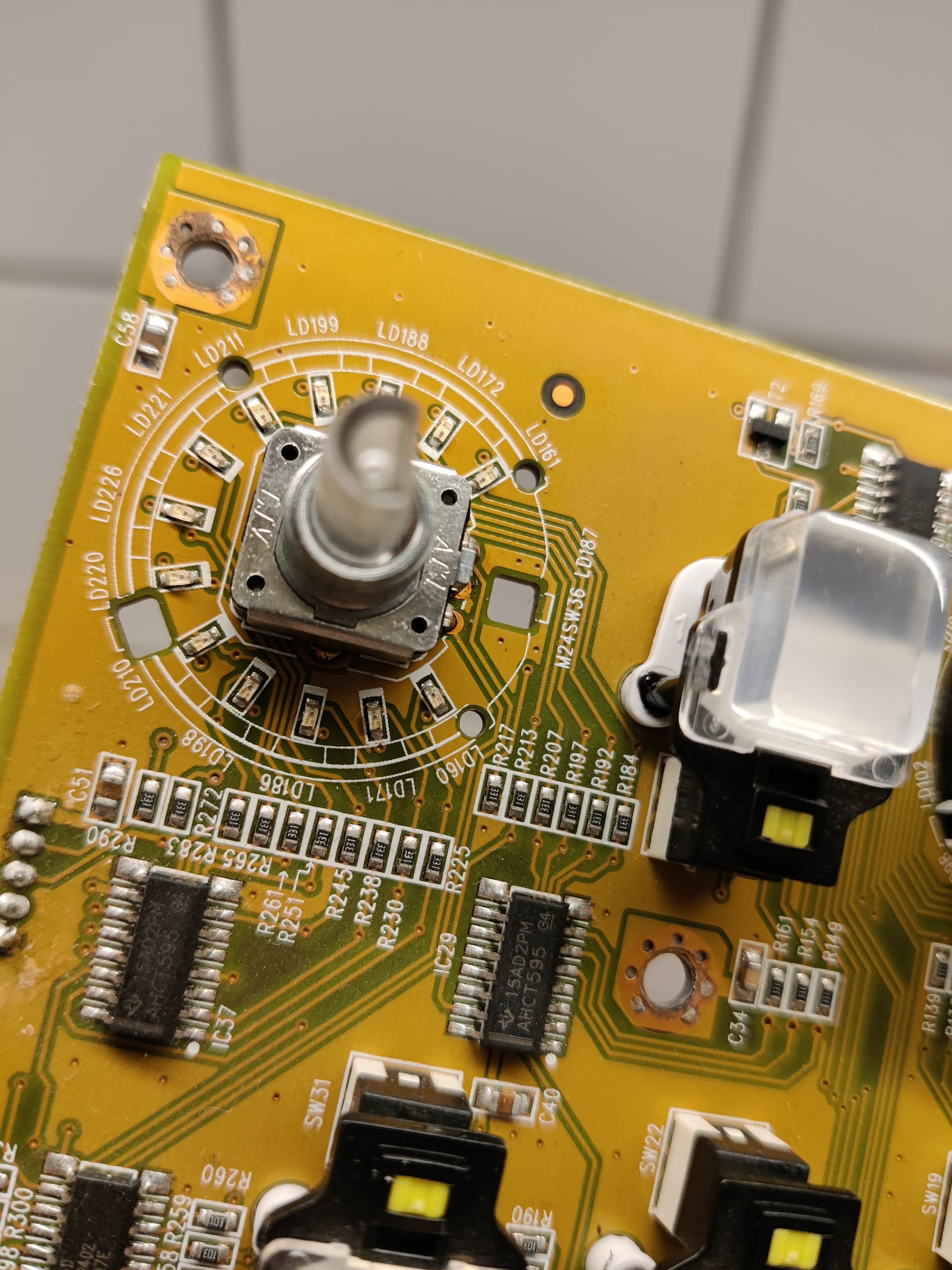

New encoder installed (Gain).

IMG_20260202_180050
IMG_20260202_1800501920×2560 420 KB

All 17 encoders were replaced. It was fun and now they work like new ones :wink:

If you have questions, please ask!

1 Like
5

Could you, please, for the record, write the type number/code of those rotary encoders?

Thank you!

6

here you go: Music Tribe Behringer X and Midas M Series Encoder, illuminated shaft - CT03-00000-000

7

Thank you very much !
